Product Summary

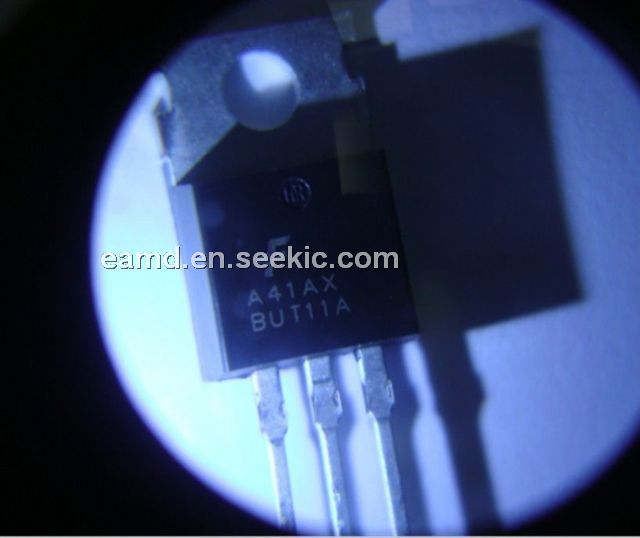

The BUT11A is an NPN Silicon Transistor.

Parametrics

BUT11A absolute maximum ratings: (1)Collector-Base Voltage : 1000V; (2)Collector-Emitter Voltage : 450V; (3)Emitter-Base Voltage : 9V; (4)Collector Current (DC) : 5A; (5)Collector Current (Pulse) : 10A; (6)Base Current (DC) : 2A; (7)Base Current (Pulse) : 4 A; (8)Collector Dissipation (TC=25℃) : 100 W; (9)Junction Temperature : 150℃; (10)Storage Temperature : -65 to 150℃.

Features

BUT11A features: (1)Collector-Emitter Sustaining Voltage : 450V; (2)Collector Cut-off Current : 1mA; (3)Emitter Cut-off Current : 10mA; (4)Collector-Emitter Saturation Voltage : 1.5V; (5)Base-Emitter Saturation Voltage : 1.3V; (6)Turn On Time : 1μs; (7)Storage Time : 4μs; (8)Fall Time : 0.8μs.

Diagrams

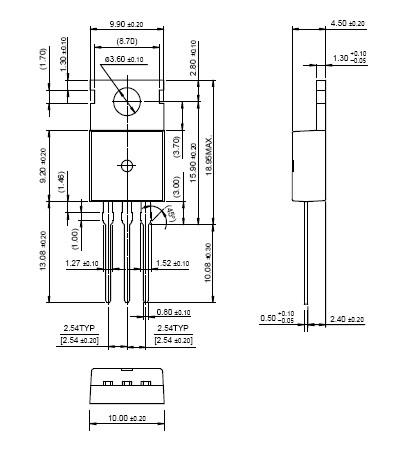

BUT11A dimension
